Self-Retracting Ratchet Strap

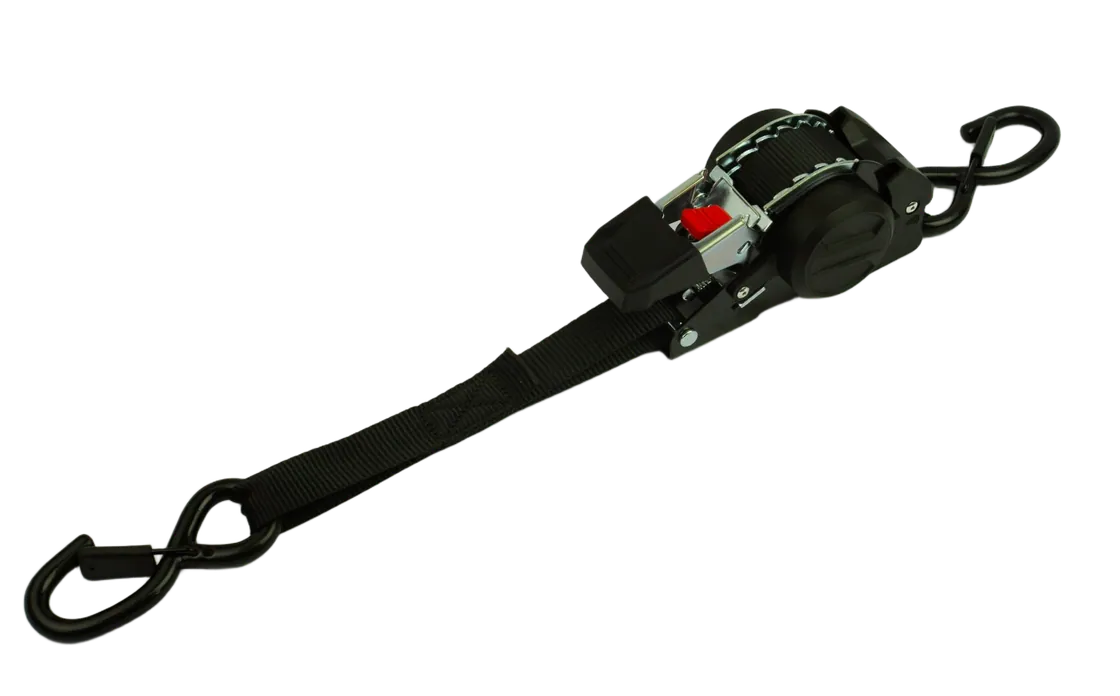

What a self-retracting ratchet strap is

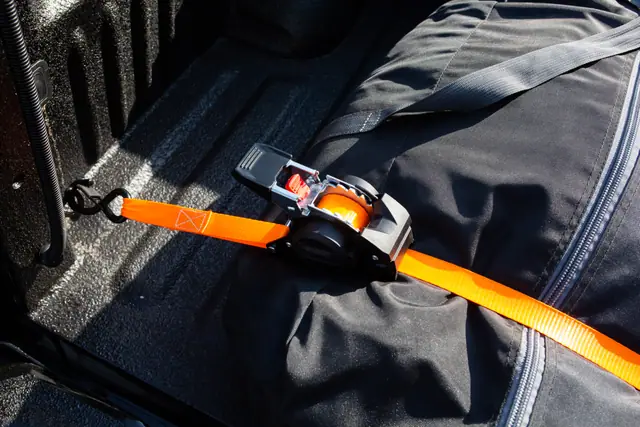

A conventional ratchet strap is an open loop. You pull webbing out of the ratchet housing, tighten it, and whatever you did not use is left hanging from the vehicle. That tail is a real problem: it can be run over, it can snag on a tailgate or a tail-lift, it flutters into the mirror of the vehicle behind you, and it has to be re-tensioned after every stop once it has worked loose. The self-retracting design removes that tail. The webbing runs into the housing rather than out of it, and the unused length is wound back inside where it is protected and invisible.

How the open-then-lock mechanism works

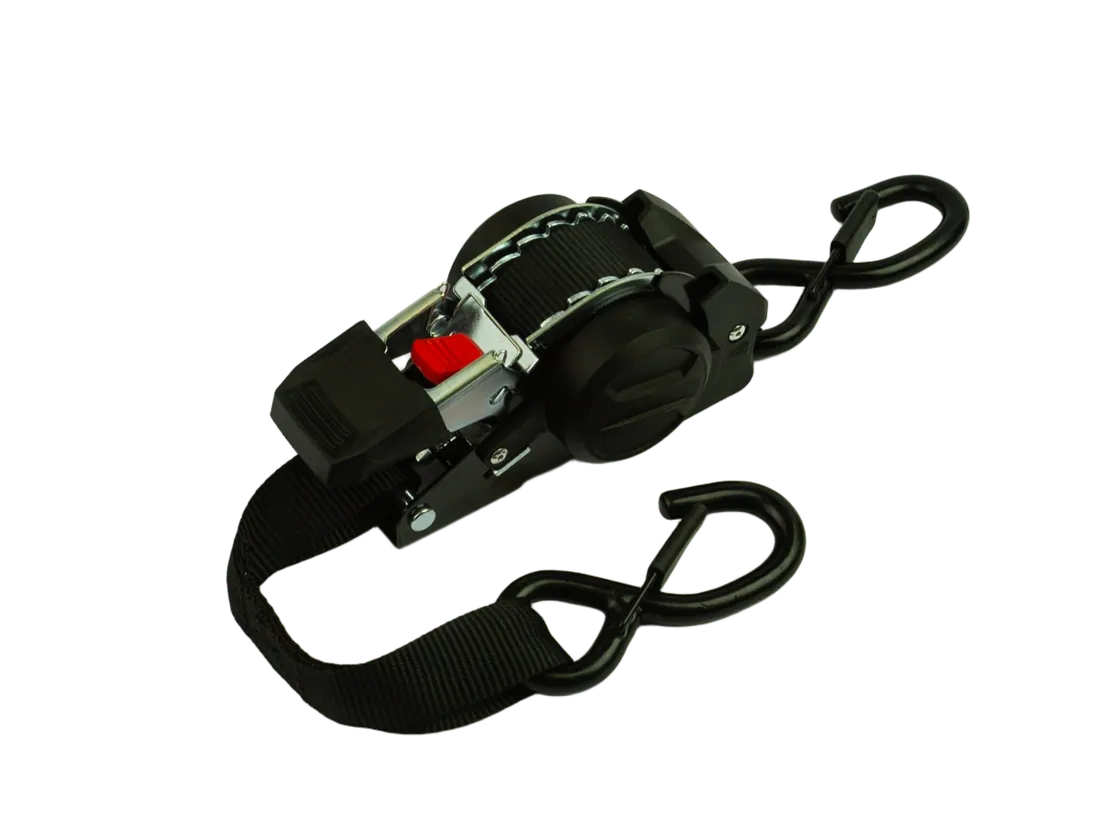

Pull the webbing out of the housing and it runs freely — the ratchet mechanism is disengaged while the strap is being drawn out. Feed the strap around the load, bring the hook to the anchor point, and now operate the handle. The handle lifts the ratchet pawl and the strap draws in. Reverse the handle stroke and the pawl drops into the next tooth, locking the webbing at that tension. You release the handle and it stays locked; you lift it again and it releases. Nothing needs to be re-tensioned after the first pass, because there is no loose loop left to work loose.

Why vinyl-coated hooks matter

A bare galvanised hook will mark a painted alloy wheel, scratch a chromed bumper or leave a rust mark on a polished surface the first time it is used. The vinyl coating is a soft sleeve over the hook body: it does not change the hook's working load, but it does mean the strap can be lashed directly to painted or polished surfaces without protection. It also slows salt and grit ingress at the hook throat. For marine work, coastal haulage and anything stored outside between uses, specify the vinyl-coated hook — it is the difference between a strap that protects the vehicle and one that marks it.

Materials and grades

The webbing is woven high-tenacity polyester. Polyester holds its strength better than polypropylene in sunlight, absorbs less water, and shrinks less under tension — all three matter for a strap that lives on a truck. Around 500 kgf breaking strength comes from 25 mm webbing, 1,000 kgf from 38 mm and 1,500 kgf from 50 mm, so the width is the lever you pull when the load goes up. Every production batch is pull-tested to its rated specification before it is packed, and the report travels with the shipment against the batch code printed on the carton. Hardware is forged steel for the handle and gears, with zinc-plated hooks; the hook is the part that is salt-spray tested at 72 hours.

Choosing the right length

Length is measured from the housing, along the webbing, around whatever the strap encircles, and back. The working figure is not the total length but the span — the distance between your two anchor points minus what the strap loses turning around the load. A strap that has to cross a load and come back needs roughly twice the width of the load in length before you account for the turn. Order the next standard length up rather than trying to make a short strap reach; a strap under tension has to be able to lie flat across the load to develop its rated capacity. If your anchor geometry is unusual, send us the dimensions and we will tell you which length to order.

OEM and ODM customisation

This is the series most of our private-label customers start with, because the housing is injection moulded here and the mould can be adjusted for your webbing width and colour. In practice that means your webbing colour and weave, your hook type including vinyl coating, your hang tag and polybag artwork, and your carton markings. Send us a competitor sample and a target price and we will tell you honestly whether we can hit it — and if the price only works with a different hardware grade, we will say so rather than quietly change the part.
