Cam Buckle Strap

What a cam buckle strap is

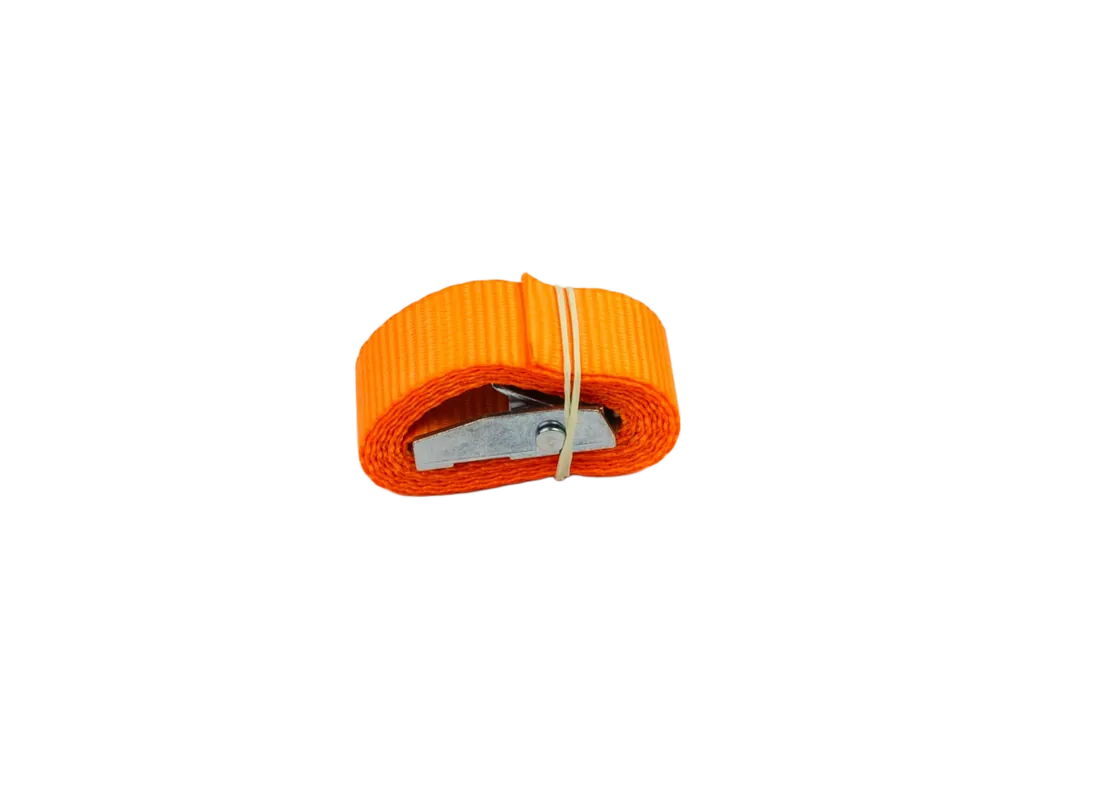

A cam buckle strap does the same job as a ratchet strap with a completely different mechanism. Instead of a toothed ratchet driven by a spring-loaded handle, it uses a pivoting cam — the same kind of device as on a rucksack strap or a tie-down buckle. You thread the webbing through the slot in the buckle body, pull it until the strap is where you want it, and then lever the cam handle over. The cam draws the webbing in and traps it. Lever it back and it releases instantly. There are no teeth to strip under a shock load, nothing spring-loaded that can fail when it is wet or dirty, and the release does not require two hands or a clear view of the mechanism.

Why the cam buckle suits boats and boards

On a kayak hull or a stand-up paddleboard, a steel strap is too stiff. It can mark the surface, it will not follow a curved hull, and it concentrates load on a small contact point that a composite shell does not appreciate. Webbing spreads the load across the width of the strap, sits flat against a curve, and can be tensioned to exactly the pressure a gelcoat or composite laminate will tolerate. This is also why we specify a cam rather than a cam-over-centre strap for boards: the cam releases when you want it to, and a paddleboard on a roof rack is taken off in the rain, in the dark, by someone wearing gloves.

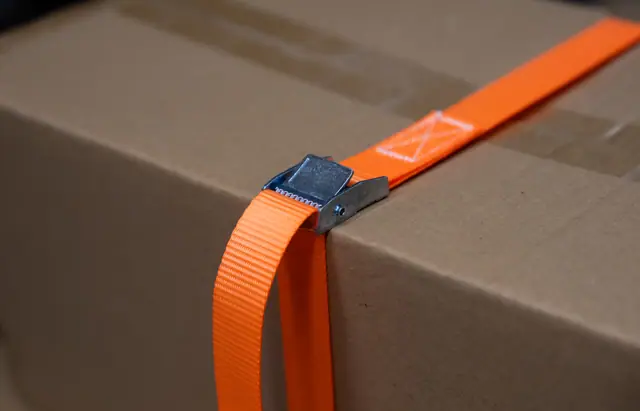

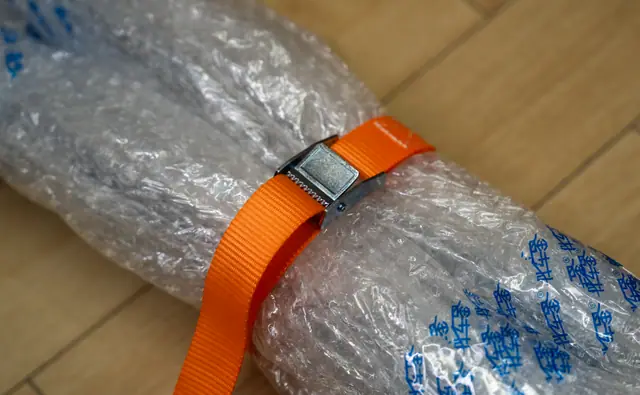

How to tension a cam buckle strap correctly

Thread the webbing through the buckle leaving about 150 mm of tail, pull the strap snug across the load, then set the cam to the middle position and pull the tail until the webbing is flat and the load cannot shift. Only then lever the cam fully over — this last stage is what locks it. Going straight to full tension with the cam skips the first stage, and the strap will creep under vibration. Check it after the first few kilometres of driving, because webbing settles under initial tension and the cam will need a second pull.

Load ratings and where the limit sits

Rated breaking strength is up to 450 kgf at 38 mm webbing, giving a safe working load of about 150 kgf. That is a light-duty figure by design and it should be treated as one. A cam buckle holds by wedging the webbing against the cam face; under a heavy shock load the cam can slip and the strap releases. For cargo that has to survive braking, cornering or a lifting operation, use the 2-inch manual ratchet strap, which has a positive tooth lock, or the self-retracting series. The cam buckle is for equipment that stays put because it is sitting still, not because it is being held.

Custom lengths and colours for private-label buyers

This is the series where customisation costs least to change, because the buckle is a stamped and assembled part rather than a moulded housing. We can produce 19 mm, 25 mm or 38 mm webbing in your colour, cut to your lengths, and fit hooks or rings on the free end. Add your logo to the hang card, print the polybag, and put your own carton markings on the box. Tell us your target retail price and the length you sell through, and we will quote from that.
